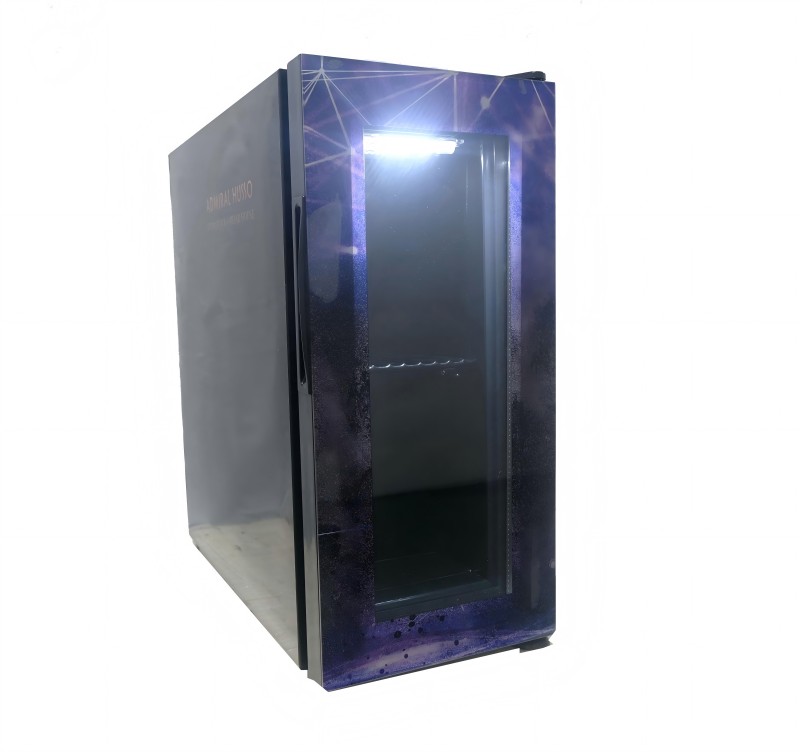

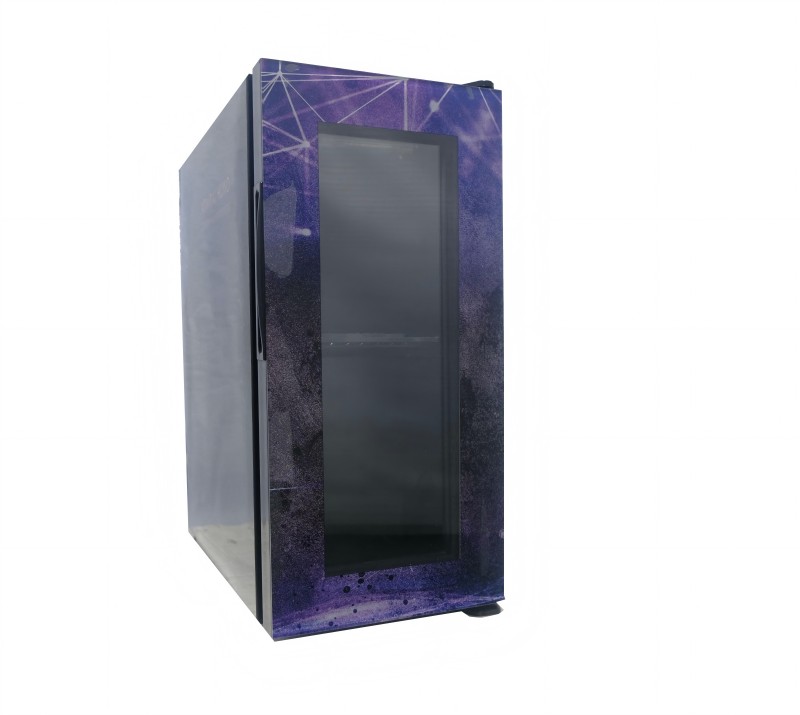

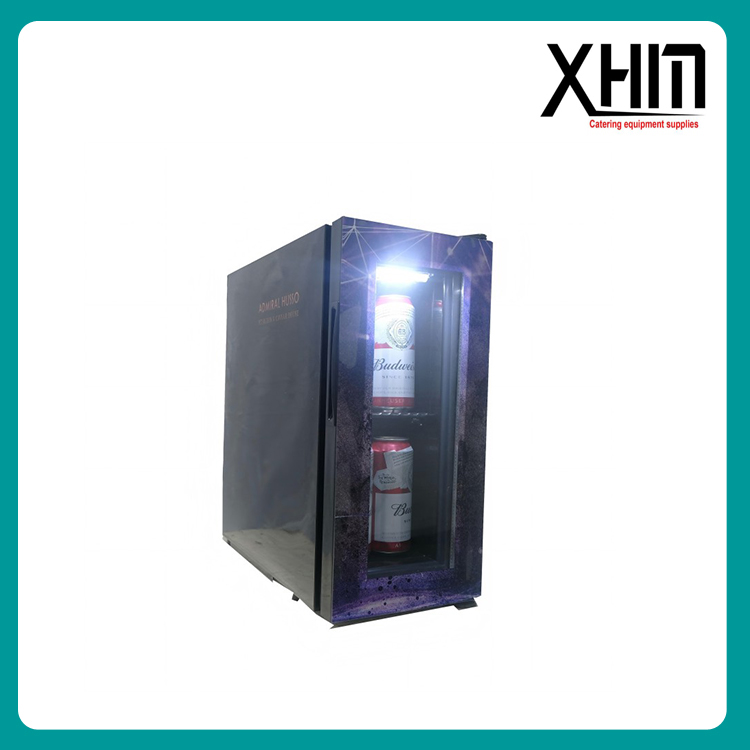

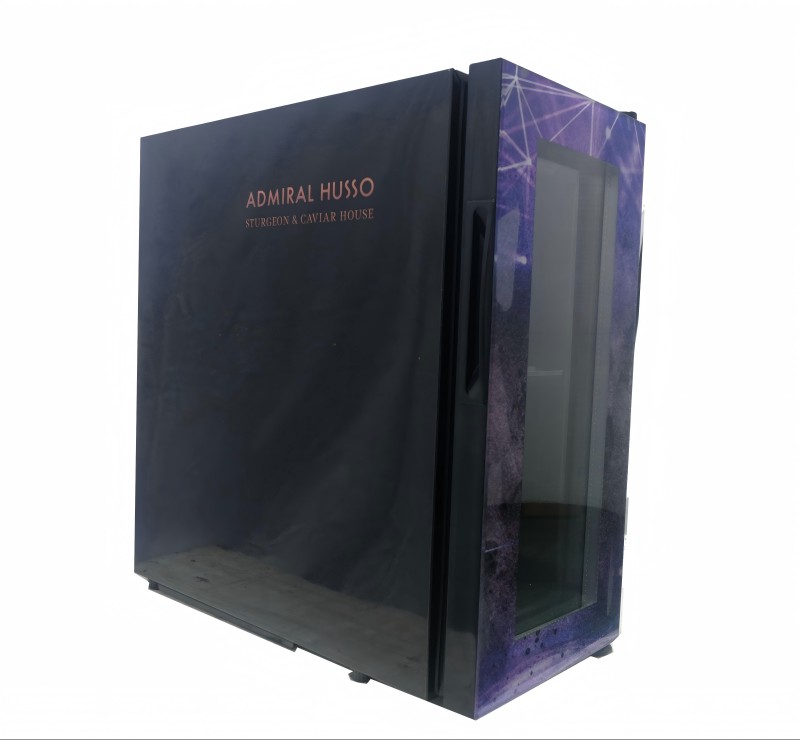

SC16 – Compact Custom Liquor Display Freezer

Small Footprint. Strong Brand Impact.

Designed for premium spirits and high-end liquor branding, the SC16 Compact Liquor Display Freezer delivers powerful visual appeal in a remarkably small format. Its slim, upright structure is ideal for countertops, back bars, hotel lounges, clubs, and promotional spaces where visibility matters but space is limited.

The front glass door combined with internal LED lighting ensures bottles and shots are clearly displayed—even in low-light environments such as bars and night venues. With a precise mechanical thermostat and a wide temperature range from -10°C to 10°C, the SC16 is perfectly suited for spirits, shooters, and promotional beverages that require controlled chilling without compromising presentation.

Beyond performance, the SC16 is built for branding. The unit supports custom logos, exterior finishes, and tailored dimensions, making it a preferred choice for liquor brands, hotels, clubs, and marketing campaigns seeking elegant product visibility in a compact form.

Key Features & Benefits

• 16L Compact Capacity – Optimized for premium liquor, shots, and specialty beverages

• Slim Upright Design – Maximizes display impact in limited spaces

• Glass Door with LED Illumination – Enhances product visibility and brand presence

• Compressor Cooling (R600a) – Stable, efficient, and environmentally friendly

• Wide Temperature Range (-10~10°C) – Suitable for various spirit display needs

• Mechanical Thermostat – Reliable and easy temperature control

• Customizable Options – Branding, colors, finishes, and special sizing available

• Low Energy Consumption – Only 0.8 kWh per 24 hours

Technical Specifications

• Model: SC16

• Capacity: 16 Litres

• Unit Size (W×D×H): 230 × 517 × 510 mm

• Inner Size:

• Bottom: 140 × 105 × 195 mm

• Upper: 140 × 405 × 205 mm

• Carton Size (W×D×H): 301 × 581 × 569 mm

• Net / Gross Weight: 15 / 17 kg

• Loading Quantity:

• 20GP: 304 pcs

• 40GP: 624 pcs

• 40HQ: 624 pcs

• Cooling System: Compressor cooling, R600a refrigerant

• Power Supply: 110V/60Hz or 220–240V/50Hz

• Input Power: 76W

• Inner Light Power: 2W

• Shelf: 1 shelf

• Climate Class: N

• Temperature Range: -10 ~ 10°C

• Standard Color: Black
